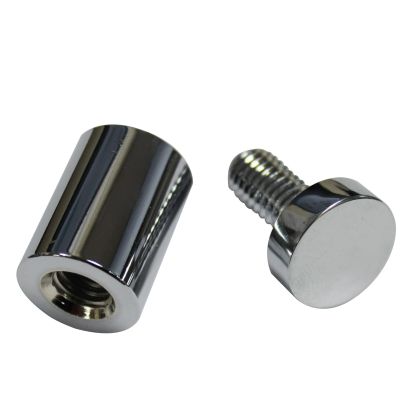

Stand-Off Sign Fixings

In stock - available for next day delivery
Stand-Off Sign Fixings

Add an architectural finish to any wall mounted sign panel.

In stock - available for next day delivery

Stand-Off Sign Fixings

Stand-Off Sign Fixings

Add an architectural finish to any wall mounted sign panel.

Fully Recyclable

Next day delivery

As well as providing an attractive stand-off feature for any sign panel material,
these fixings will accommodate an uneven wall surface, which could include
any texture or render present on brick or stone wall.

  • Allows air to move freely across both the front and rear of the sign panel.
  • Eliminates condensation or dirt build-up from behind, essential for clear signmaterials, ensuring the message is always visible.
  • No apparent screw heads, concealed mounting method acts as an effective tamper deterrent.
  • Holds sign panel thicknesses from 2mm to 12mm.
  • Supplied in pairs in protective polythene enclosures.
  • Screws and wall plugs are not included (since no two surfaces are ever the same, fixings should be selected to suit).
  • Use 321 grade Stainless Steel stand-offs for long life outdoors
  •

Stand-Off Sign Fixings as used in our Wall Mounted Information Displays



13mm diameter

Item O/A Dimensions
(Dia x Stand-off height mm)
Panel Thickness Range
(mm)
Order Code
Stainless Steel Self Colour 13 x 19 2 – 10 13X19SSSC
Aluminium Satin Silver 13 x 19 2 – 10 13X19ALSS
Aluminium Chrome Plated 13 x 19 2 – 10 13X19ALCP
Brass Plated Gold 13 x 19 2 – 10 13X19BRPG



19mm diameter

Item O/A Dimensions
(Dia x Stand-off height mm)
Panel Thickness Range
(mm)
Order Code
Stainless Steel Self Colour 19 x 25 2 – 12 19X25SSSC
Aluminium Satin Silver 19 x 25 2 – 12 19X25ALSS
Aluminium Chrome Plated 19 x 25 2 – 12 19X25ALCP
Brass Plated Gold 19 x 25 2 – 12 19X25BRPG



 Screw Selection Guide

Stand-off Pillar Size Max. Screw Head Dia. Max. Screw Thread Dia. Hole Size in Sign Panel
13mm diameter 6.6mm No. 6 (3.5mm) 8mm Required
19mm diameter 8.0mm No. 8 (4.2mm) 10mm Required



More Information
Discontinued No
Best Selling No
Indoor/Outdoor Outdoor
Setting Wall / Window Mounted
Illumination Non Illuminated
