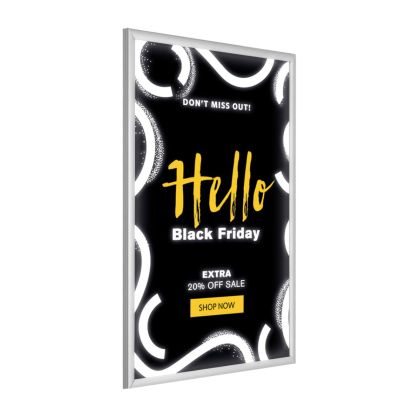

Illuminated Edgelit XT Poster Frame
Wall Mounted Edgelit XT Advertising Wine
Snapframe Sides on Edgelit XT
Cover Sheet for Edgelit XT
On/off Switch on Edgelit XT
Diagram of Edgelit XT

Edgelit XT

Signwaves stylish 'extra thin' LED illuminated snapframe. 25mm profile with a silver anodised finish, available in a range of display sizes.

Select your options

  • Size:
  • Type:
  • Colour:
Request a quote Log in to view prices
  • Specially treated acrylic panel provides strong, even illumination across the entire surface.
  • Front-opening aluminium Snapframes for quick and easy poster change (silver anodised 25mm profile).
  • Available single sided (in stock) or double sided (made to order).
  • Anti-glare PET poster covers ensures clarity of message.
  • Slim, elegant design - single-sided units only 19mm deep.
  • Osram LED’s emitting 6500K ‘daylight’ colour temperature.
  • 3m extension cables (available separately).
  • CE certificate supplied with each unit.
  • Also available in custom sizes and colours made to order (minimum order quantity: 5).
  • Max size 850 x 1200 mm. Max perimeter 4000mm. Max short side 850mm. Max long side 1500mm.


LED illumination:

  • Bright, even and long-lasting – 50,000+ hours life!
  • Low-voltage – low power consumption and completely safe.
  • No need for a qualified electrician to install.
  • No risk of bulb breakages – maintenance free.
Single-Sided:
Poster Size Display Area
(mm)		 Overall Dimensions
(w x h x d mm)		 Weight (kg) Availability Order Code
A4 190 x 277 242 x 329 x 19 2.6 Made to Order ULD25TN0A4
A3  277 x 400 329 x 452 x 19 3.4  In Stock LEDA3
A2  400 x 574 452 x 626 x 19 4.2  In Stock  LEDA2
A1  574 x 821 626 x 873 x 19 8.1  In Stock  LEDA1
A0  821 x 1169 873 x 1221 x 19 13.5  In Stock  LEDA0
20” x 30” 488 x 742 540 x 794 x 19 6.7  Made to Order  ULD25TN023
30” x 40” 742 x 996 794 x 1048 x 19 10.8  In Stock  LED34
500 x 700 mm 480 x 680 532 x 732 x 19 6.4  Made to Order  ULD25N0B2
700 x 1000mm 680 x 980 732 x 1032 x 19 9.9  Made to Order  ULD25TN0B1


Double-sided:

Poster Size Display Area (mm) O/A Dimensions
(w x h x d mm)		 Weight (kg) Availability Order Code
A4 190 x 277 242 x 329 x 28 3.1 Made to Order ULD25CN0A4
A3  277 x 400 329 x 452 x 28 3.4 ULD25CN0A3
A2  400 x 574 452 x 626 x 28 5.8  ULD25CN0A2
A1  574 x 821 626 x 873 x 28 10  ULD25CN0A1
20” x 30” 488 x 742 540 x 794 x 28 8.4  ULD25CN023
500 x 700 mm 480 x 680 532 x 732 x 28 8  ULD25CN0B2
